Current Position:Home >> Products >> Power supply adapter >> 14.4W series

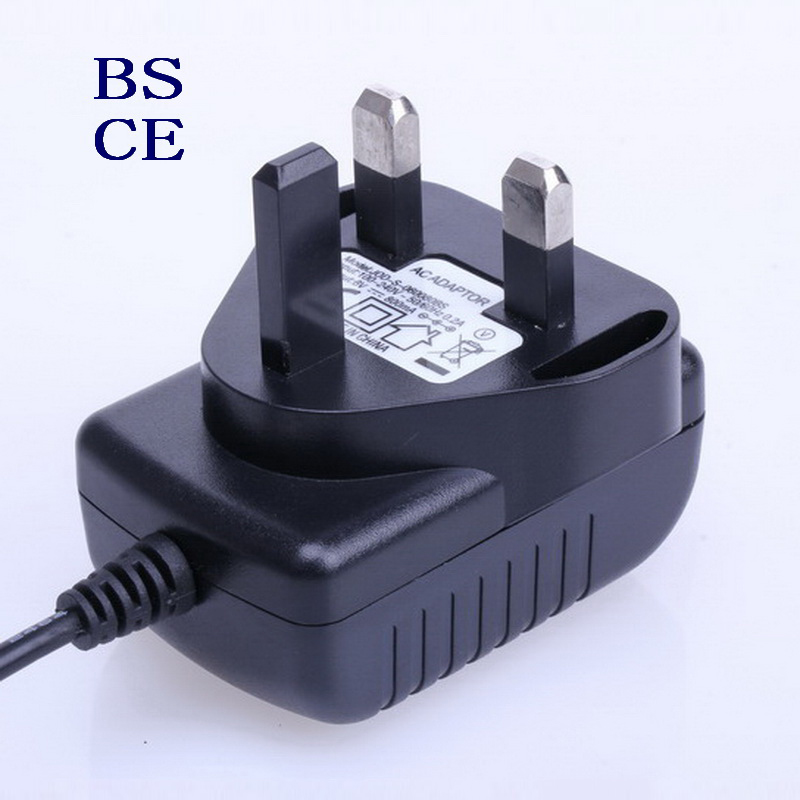

14.4W BS
  • 14.4W BS

14.4W BS

Hotline:13723412811

Product Description

InputRated Input Voltage100VAC-240VACRated Input Frequency50/60Hz



Input Voltage Range90VAC-264VACInrush Current30A Max



Input Current0.5A MaxLeakage Current0.25mA Max



EfficiencyCEC ERP GEMS
OutputOutput VoltageDC 3-30V



Output Voltage Regulation±5% constant Voltage Mode



Output Current Regulation±5% constant Current Mode



Output Current 0.1A-2.5A



Ripple and Noise120mVp-p max @20MHz Bandwidth 47uF Ele.Cap.+0.1uF Cer.Cap.



Maximal Power9W max



Turn-On Delay TimeLess than 3S Typical At Full Load



Hold-up Time10ms Typical At Full Load



ProtectionOver-current Protection; short-circuit Protection; ver-voltage Protection



DC CableUL2468 UL2464 UL1185 SPT
The certificateUL GS PSE CE CB SAA FCC LVD EMC C-TICK RCM
standardEMCCISPR22/EN55022 CISPR24/EN55024 EN 61000  FCC Part 15



SafetyIEC/EN AS/NZS 60950 UL60950  J60950
EnvironmentalOperation Temperature0℃ to 40℃ ambient



Storage Temperature.-10℃ to 75℃



High-Reliability: MTBF > 20000 Hours under 25℃
Weight70g
