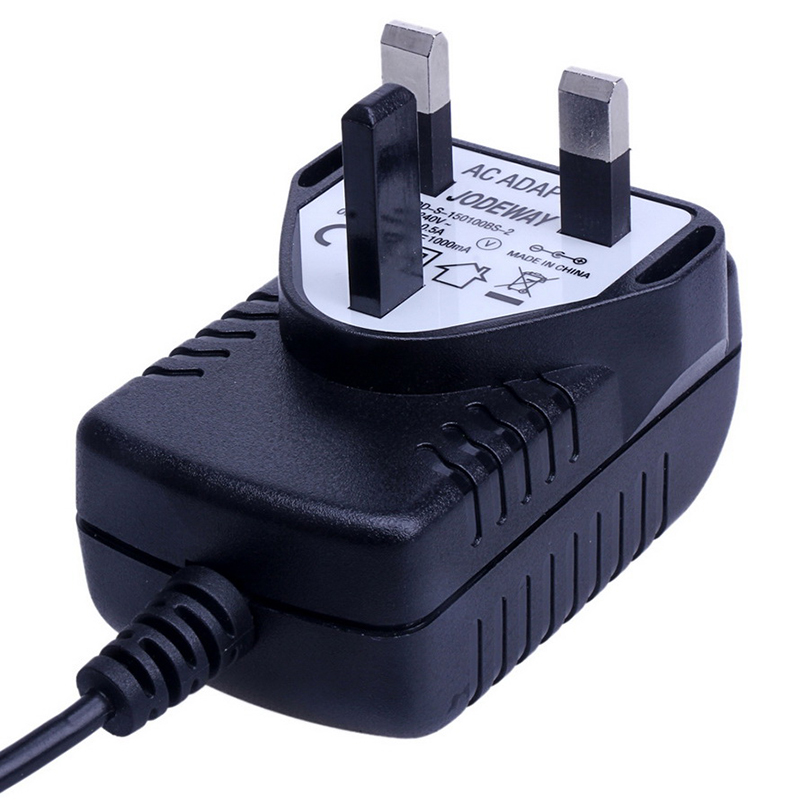

18W BS
  • 18W BS

18W BS

Hotline:13723412811

Product Description

Input Rated Input Voltage 100VAC-240VAC Rated Input Frequency 50/60Hz



Input Voltage Range 90VAC-264VAC Inrush Current 30A Max



Input Current 0.5A Max Leakage Current 0.25mA Max



Efficiency CEC ERP GEMS
Output Output Voltage DC 3-36V



Output Voltage Regulation ±5% constant Voltage Mode



Output Current Regulation ±5% constant Current Mode



Output Current  0.01A-3A



Ripple and Noise 120mVp-p max @20MHz Bandwidth 47uF Ele.Cap.+0.1uF Cer.Cap.



Maximal Power 18W max



Turn-On Delay Time Less than 3S Typical At Full Load



Hold-up Time 10ms Typical At Full Load



Protection Over-current Protection; short-circuit Protection; ver-voltage Protection



DC Cable UL2468 UL2464 UL1185 SPT
The certificate ETL UL GS PSE CE CB SAA FCC LVD  EMC C-TICK RCM
standard EMC CISPR14/EN55014 EN55014-2 EN 61000  FCC Part 15



Safety IEC/EN AS/NZS61558 IEC/EN AS/NZS 60335 ETL1310  J60335 J61558
Environmental Operation Temperature 0℃ to 40℃ ambient



Storage Temperature .-10℃ to 75℃



High-Reliability: MTBF > 20000 Hours under 25℃
Weight
