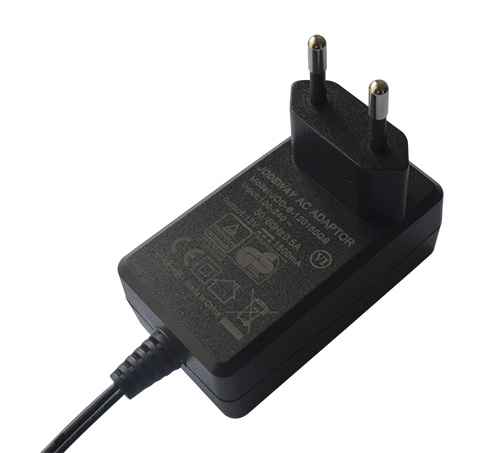

  • 18W-GS18W-GS
  • 18W-UK18W-UK
  • 6W GS6W GS
  • 18W-AU18W-AU
  • 6W BS6W BS
  • 18W-UL18W-UL
  • 6W SAA6W SAA
Current Position:Home >> Products >> Power supply adapter >> 24W series
24W GS
  • 24W GS

24W GS

Hotline:13723412811

Product Description

Input Rated Input Voltage 100VAC-240VAC Rated Input Frequency 50/60Hz



Input Voltage Range 90VAC-264VAC Inrush Current 50A Max



Input Current 0.5A Max Leakage Current 0.25mA Max



Efficiency CEC ERP GEMS
Output Output Voltage DC 3.3-24V



Output Voltage Regulation ±5% constant Voltage Mode



Output Current Regulation ±5% constant Current Mode



Output Current  0.01A-4A



Ripple and Noise 120mVp-p max @20MHz Bandwidth 47uF Ele.Cap.+0.1uF Cer.Cap.



Maximal Power 24W max



Turn-On Delay Time Less than 3S Typical At Full Load



Hold-up Time 10ms Typical At Full Load



Protection Over-current Protection; short-circuit Protection; ver-voltage Protection



DC Cable UL2468 UL2464 UL1185 SPT
The certificate UL GS PSE CE CB SAA FCC LVD EMC C-TICK RCM CCC
standard EMC CISPR22/EN55022 CISPR24/EN55024 EN 61000  FCC Part 15



Safety IEC/EN AS/NZS60950 UL60950 J60950
Environmental Operation Temperature 0℃ to 40℃ ambient



Storage Temperature .-10℃ to 75℃



High-Reliability: MTBF > 20000 Hours under 25℃
Weight
