6W UL
18W-GS

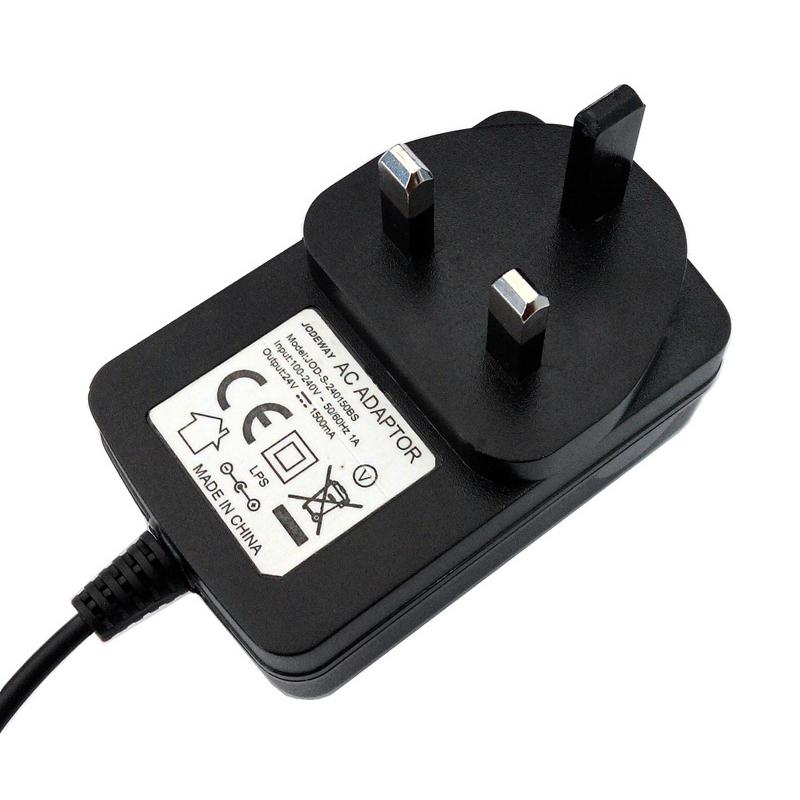

18W-UK
6W GS
18W-AU
6W BS
18W-UL
6W SAA
| Input | Rated Input Voltage | 100VAC-240VAC | Rated Input Frequency | 50/60Hz | |
| Input Voltage Range | 90VAC-264VAC | Inrush Current | 50A Max | |
| Input Current | 1A Max | Leakage Current | 0.25mA Max | |
| Efficiency | CEC ERP GEMS | |||
| Output | Output Voltage | DC 3.3-24V | |||
| Output Voltage Regulation | ±5% constant Voltage Mode | |||
| Output Current Regulation | ±5% constant Current Mode | |||
| Output Current | 0.01A-4A | |||
| Ripple and Noise | 120mVp-p max @20MHz Bandwidth 47uF Ele.Cap.+0.1uF Cer.Cap. | |||
| Maximal Power | 36W max | |||
| Turn-On Delay Time | Less than 3S Typical At Full Load | |||
| Hold-up Time | 10ms Typical At Full Load | |||
| Protection | Over-current Protection; short-circuit Protection; ver-voltage Protection | |||
| DC Cable | UL2468 UL2464 UL1185 SPT | |||
| The certificate | UL GS PSE CE CB SAA FCC LVD EMC C-TICK RCM | ||||
| Input | Rated Input Voltage | 100VAC-240VAC | Rated Input Frequency | 50/60Hz | |
| Input Voltage Range | 90VAC-264VAC | Inrush Current | 50A Max | |
| Input Current | 1A Max | Leakage Current | 0.25mA Max | |
| Efficiency | CEC ERP GEMS | |||
| Output | Output Voltage | DC 3.3-24V | |||
| Output Voltage Regulation | ±5% constant Voltage Mode | |||
| Output Current Regulation | ±5% constant Current Mode | |||
| Output Current | 0.01A-4A | |||
| Ripple and Noise | 120mVp-p max @20MHz Bandwidth 47uF Ele.Cap.+0.1uF Cer.Cap. | |||
| Maximal Power | 36W max | |||
| Turn-On Delay Time | Less than 3S Typical At Full Load | |||
| Hold-up Time | 10ms Typical At Full Load | |||
| Protection | Over-current Protection; short-circuit Protection; ver-voltage Protection | |||
| DC Cable | UL2468 UL2464 UL1185 SPT | |||
| The certificate | UL GS PSE CE CB SAA FCC LVD EMC C-TICK RCM | ||||
| standard | EMC | CISPR22/EN55022 CISPR24/EN55024 EN 61000 FCC Part 15 | |||
| Safety | IEC/EN AS/NZS60950 UL60950 J60950 | |||
| Environmental | Operation Temperature | 0℃ to 40℃ ambient | |||
| Storage Temperature | .-10℃ to 75℃ | |||
| High-Reliability: MTBF > 20000 Hours under 25℃ | ||||
| Weight |
| ||||
| EMC | CISPR22/EN55022 CISPR24/EN55024 EN 61000 FCC Part 15 | ||||
| Input | Rated Input Voltage | 100VAC-240VAC | Rated Input Frequency | 50/60Hz | |
| Input Voltage Range | 90VAC-264VAC | Inrush Current | 50A Max | |
| Input Current | 1A Max | Leakage Current | 0.25mA Max | |
| Efficiency | CEC ERP GEMS | |||
| Output | Output Voltage | DC 3.3-24V | |||
| Output Voltage Regulation | ±5% constant Voltage Mode | |||
| Output Current Regulation | ±5% constant Current Mode | |||
| Output Current | 0.01A-4A | |||
| Ripple and Noise | 120mVp-p max @20MHz Bandwidth 47uF Ele.Cap.+0.1uF Cer.Cap. | |||
| Maximal Power | 36W max | |||
| Turn-On Delay Time | Less than 3S Typical At Full Load | |||
| Hold-up Time | 10ms Typical At Full Load | |||
| Protection | Over-current Protection; short-circuit Protection; ver-voltage Protection | |||
| DC Cable | UL2468 UL2464 UL1185 SPT | |||
| The certificate | UL GS PSE CE CB SAA FCC LVD EMC C-TICK RCM | ||||
| standard | EMC | CISPR22/EN55022 CISPR24/EN55024 EN 61000 FCC Part 15 | |||
| Safety | IEC/EN AS/NZS60950 UL60950 J60950 | |||
| Environmental | Operation Temperature | 0℃ to 40℃ ambient | |||
| Storage Temperature | .-10℃ to 75℃ | |||
| High-Reliability: MTBF > 20000 Hours under 25℃ | ||||
| Weight |
| ||||
| Safety | IEC/EN AS/NZS60950 UL60950 J60950 | ||||
| Environmental | Operation Temperature | 0℃ to 40℃ ambient | |||
| Storage Temperature | .-10℃ to 75℃ | |||
| High-Reliability: MTBF > 20000 Hours under 25℃ | ||||
| Weight |
| ||||
