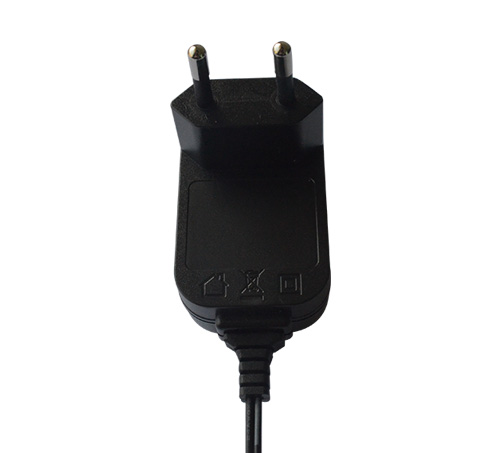

9W-GS
  • 9W-GS

9W-GS

Hotline:13723412811

Product Description

InputRated Input Voltage100VAC-240VACRated Input Frequency50/60Hz

Input Voltage Range90VAC-264VACInrush Current30A Max

Input Current0.3A MaxLeakage Current0.7mA Max

EfficiencyCEC DOE  ERP GEMS (LEVEL VI)
Outpututput VoltageDC 3.0-36V

 Voltage Regulation±5% constant Voltage Mode

Output Current Regulation±5% constant Current Mode

Output Current 0.01A-1.5A

Ripple and Noise200mVp-p max @20MHz Bandwidth 10uF Ele.Cap.+0.1uF Cer.Cap.

Maximal Power9W max

Turn-On Delay TimeLess than 3S Typical At Full Load

Hold-up Time10ms Typical At Full Load

ProtectionOver-current Protection; short-circuit Protection; ver-voltage Protection

DC CableUL2468&UL2464& UL1185
The certificateETL/ GS/CE/CB/SAA/FCC/EMC/LVD/C-TICK/RCM
standardEMCAS/NZS CISPR15  EN55015 EN61547  EN 61000  FCC Part 15

SafetyIEC/EN61347 AS/NZS 61347&UL8750
EnvironmentalOperation Temperature0℃ to 40℃ ambient

Storage Temperature.-10℃ to 75℃

High-Reliability: MTBF > 20000 Hours under 25℃
Weight50g
